UL SOLAR 85 Watt 12 VDC RV Solar Kit with Charger and Mounts description

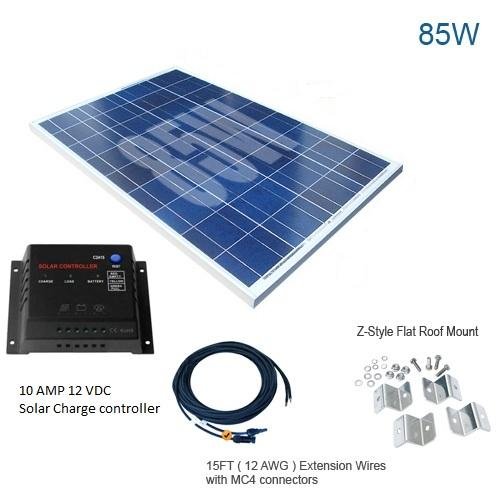

RV solar kits are a wonderful way to extend the amount of time that can possibly be spent camping in an RV. By utilizing solar power, the normal energy options may be greatly supplemented or entirely supplanted. With solar panels, you can rely far less on generators and batteries. There are several RV solar kits on the market today. Our 85 watt RV solar kit comes complete and ready to install. 85 WATT Solar Power Kit Includes 85 Watt 12 Volt Solar Panel - 1pcs, 10 Amp 12 VDC Charge Controller - 1pcs, Z-Flat Surface Mounting Kit - 1pcs, 15FT Long Extension Wires with MC4 Connectors ( UL Approved ) - 1pcs. Power at STC(Pm): 85 WATT Maximum power voltage (Vpm): 17.3 Volt Maximum power current (Ipm): 4.7 Amp Open circuit voltage (Voc): 21.9 Volt Short circuit current (Isc): 5.1 Amp Tolerance: ±5% Cell: polycrystalline silicon Solar cell, Cell Size: 156mm x 88mm Dimension: 34.4in x 26.3 in x 1.38in Charge Controller Features: Micro-CPU and State of charge battery system control ability. Control the charging and discharging of the battery. Low voltage load control. Float-charge battery by PWM automatically when approaching full charge. Prevent battery from reverse charge during night time. Protection Circuit IP22 (please use enclosure for the charge controller to prevent moisture and no direct sunlight on the charge controller) MODEL: C2415 10A Rated Voltage: 12V /24 V Automatic voltage recognition Max Load Current 10 A @ 12Volt Input Voltage 12V - 17V/ 24 V-34V Over Voltge protection 17V/34V Full Charge Cut 13.7V-14.4V/21V-22V No load power loss <10mA Ambient Temperature -25 C to 55 C
