Morningstar TS-MPPT-60 TriStar 60 Amp Charge Controller 12-48V description

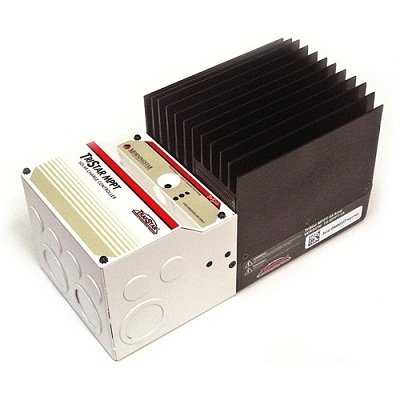

Morningstar's TriStar MPPT solar controller with TrakStar Technology is an advanced maximum power point tracking (MPPT) battery charger for off-grid photovoltaic (PV) systems up to 3kW. The controller provides the industry's highest peak efficiency of 99% and significantly less power loss compared to other MPPT controllers. The TriStar MPPT features a smart tracking algorithm that maximizes the energy harvest from the PV by rapidly finding the solar array peak power point with extremely fast sweeping of the entire I-V curve. This product is the first PV controller to include on-board Ethernet for a fully web-enabled interface and includes up to 200 days of data logging.
Specifications:
Max. Battery Current: 60 Amps
Nominal Max. Solar Input:
12V: 800 Watts
24V: 1600 Watts
48V: 3200 Watts
Voltage: 12-48V
Max. Solar Open Circuit Voltage: 150V DC
Standard Features:
Maximizes Energy Harvest - Very fast sweeping of the entire I-V curve
Extremely High Reliability - Parallel circuit design provides less stress and longer life for electronic components
Very High Efficiency - Continuous operation at full power to 45°C without need to de-rate
Extensive Networking and Communication Capabilities - Meterbus allows communications between compatible Morningstar products. Serial RS-232 provides connection to a personal computer
Certified to IEC 62093
